Racking Battery Enclosure

OkSolar.com Racking Battery Enclosure
* Priced on Request
Item no.: 7046
Manufactured by OkSolar.com

In Stock: Florida USA / Barcelona Spain / Milano Italy / New York USA / Nimes France
Length: 28 in.
Width: 28 in.
Height: 40 in.
Shipping Weight: 230 lbs.

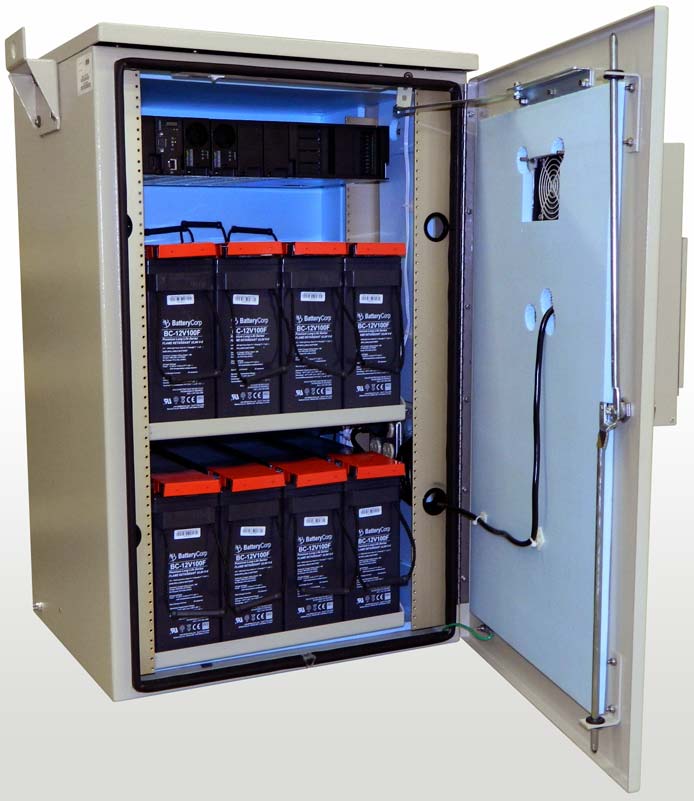

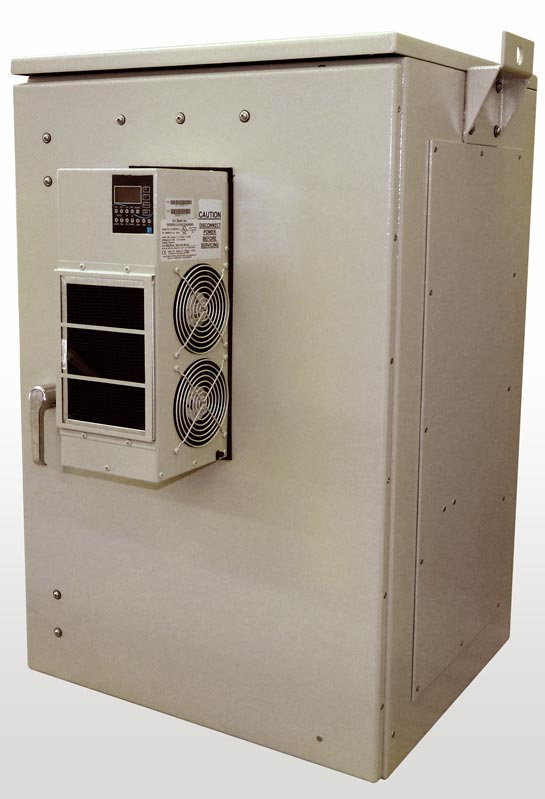

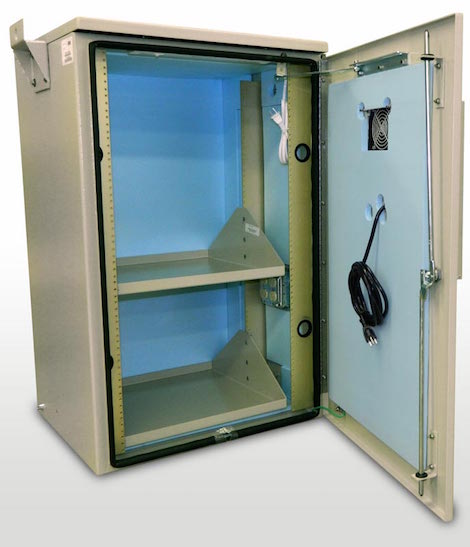

Racking Battery Enclosure

  • 40″H X 28″W X 28″D Standard Cabinet
  • Front Set of 19″ Racking Rails
  • Center Set of 23″Racking Rails
  • 3 Point Padlocking Handle
  • Populated 4 Square Outlet
  • 2400 BTU AC 110V Click Here for Specs
  • .5 Insulation
  • 2 Center Mount Battery Tray’s 25”W x 24”D
  • Flourescent Light
  • Door Windlock
  • Lifting Hooks
  • Less Batteries
  • **POWER SUPPLY NOT INCLUDED**

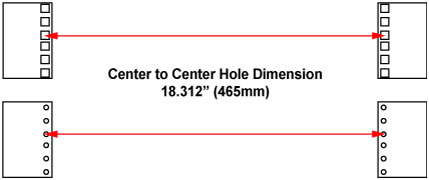

Racking Spec Layout.

STANDARD EIA 19″ Racking.

EIA-310 is a specification for what is often called the “standard rack”. This specification standardizes several important features of 19″ racks, such as the Rack Unit (RU or U), vertical hole spacing, horizontal hole spacing, rack opening, and front panel width. The specification also set tolerances on each of these dimensions.

Click here to request more information on this item.
Note: Since these units are custom made, internal and external distribution of components may vary. Pictures are provided to help visualize the final product, but the final product may vary. We will work with your technical department to provide cutting edge technology with the latest technical components.
