OkSolar.com Outdoor Enclosure 30H X 59W X 25D (30 RU) Triple Bay.
* Priced on Request
Item no.: 7067
Manufactured by OkSolar.com

In Stock: Florida USA / Barcelona Spain / Milano Italy / Nimes France
Length: 25 in.
Width: 88.5 in.
Height: 30 in.
Shipping Weight: 425 lbs.

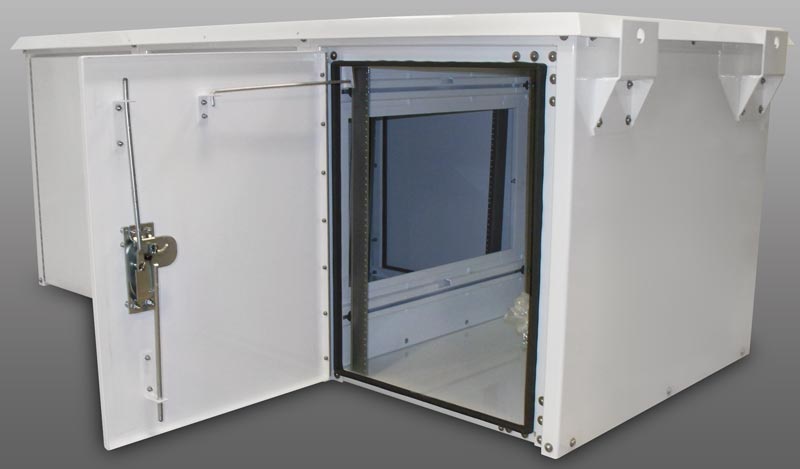

Outdoor Enclosure 30H X 88.5W X 25D (45 RU) Triple Bay.

  • 30″H x 88.5″W x 25″D
  • 45 Racking Units Total
  • 3 Sets of Adjustable 19″ or 23″ Racking Rails w/ RU Markings and Pass-through Holes
  • Powder Baked on Textured Cream Paint
  • 3 Front and 3 Rear Doors
  • New Zinc Die Powder-coated Black EMKA Three Point Padlocking Handles
  • Heavy Duty Alumishield® Design
  • Heavy Duty Lifting Hooks
  • EMKA Wind Lock on Each Door
  • **Cabinet is Same as Above Except Painted Cream**



Racking Spec Layout.

STANDARD EIA 19″ Racking.

EIA-310 is a specification for what is often called the “standard rack”. This specification standardizes several important features of 19″ racks, such as the Rack Unit (RU or U), vertical hole spacing, horizontal hole spacing, rack opening, and front panel width. The specification also set tolerances on each of these dimensions.







Click here to request more information on this item.


Note: Since these units are custom made, internal and external distribution of components may vary. Pictures are provided to help visualize the final product, but the final product may vary. We will work with your technical department to provide cutting edge technology with the latest technical components.
